You are here: home  > Wooden Cabinet Sspeaker  > WD series cabinet speaker  > WD-15
Enlarge WD-15

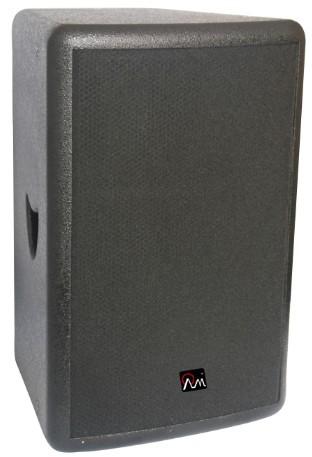

WD-15

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: WD-15
Production Capacity: 10000 pcs
Delivery Date: 35~50 days
Means of Transport: Ocean
Packing: carton

professional speaker box,wooden cabinet speaker

Product Description
Packing: ..............................Carton
Model NO.:.......................... WD-15
Standard: .............................15"
HS Code: .............................8501310000
Trademark:.......................... ALM
Origin: ...................................Ningbo, China
Type: .....................................Portable
Amplification Type: .............Passive
Usage: .................................Stage/DJ
Size Available: ....................10", 12", and 15"
Export Markets: ....................North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

ACOUSTIC SPECIFICATIONS
Model name: WD-15
· Power System: - - - - - - - - 450W RMS/900W peak (AES Standard)
· Maximum SPL @ 1m: - - 117dB continuous/121dB peak
· Frequency Response: - - - 55Hz-20KHz
· Sensitivity (1w @ 1mt): - - -98.5dB SPL
· Impedance: - - - - - - - - - - - 8Ω (nominal)
· Coverage (H× V): - - - - - - -70° × 70° Nominal
· Transducer Low: - - - - - - - 1X 15" Woofer, 3" voice coil, 60OZ magnet
· Transducer High: - - - - - - -1.75" Titanium
· Passive Crossover: - - - - - - 2.25KHz at 12dB/oct, with HF protection
· Input Connectors: - - - - - - Two Parallel SPK for INPUT/THRU
· Enclosure Construction: - -MDF wood cabinet, glued and reinforced,
Black painted; And rubber foot
